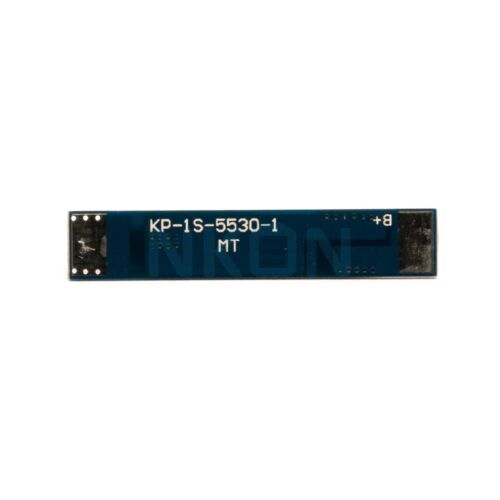

1S Bms / Pcb 1Mos - 5530 - 3A - 3.6V
Product specifications
Product description
1. Model: XZD-1S5530
2. PCB Material: FR4 (5.5*30mm)
3. Overcharge detection voltage(VCU): 4.25±0.05V
4. Overcharge detection delay time: 1.0±0.5 S
5. Overcharge release voltage: 4.05±0.05V
6. Under-discharge detection voltage(VDD): 2.5±0.10V
7. Under-discharge detection delay time: 1.0±0.5 S
8. 3.6 Under-discharge release voltage: 3.0±0.1V
9. Excess current threshold (IEC): 4-7A
10. Maximum Continuous Current: 2-3A
11. Short detection delay time: MAX.18mS
12. Supply current(V cell=3.5V): MAX.10μA
13. Standby current(V cell=1.8v): MAX. 1uA
14. PCB total resister: MAX. 40Mω
This BMS-system can't balance a battery pack, it's only for the cutoff of under and over-voltage
Extra information
.
Reviews
Out of stock
€1.50
- Buy 100 pieces for €1.25 each
1. Model: XZD-1S5530
2. PCB Material: FR4 (5.5*30mm)
3. Overcharge detection voltage(VCU): 4.25±0.05V
4. Overcharge detection delay time: 1.0±0.5 S
5. Overcharge release voltage: 4.05±0.05V
6. Under-discharge detection voltage(VDD): 2.5±0.10V
7. Under-discharge detection delay time: 1.0±0.5 S
8. 3.6 Under-discharge release voltage: 3.0±0.1V
9. Excess current threshold (IEC): 4-7A
10. Maximum Continuous Current: 2-3A
11. Short detection delay time: MAX.18mS
12. Supply current(V cell=3.5V): MAX.10μA
13. Standby current(V cell=1.8v): MAX. 1uA
14. PCB total resister: MAX. 40Mω
This BMS-system can't balance a battery pack, it's only for the cutoff of under and over-voltage
.
